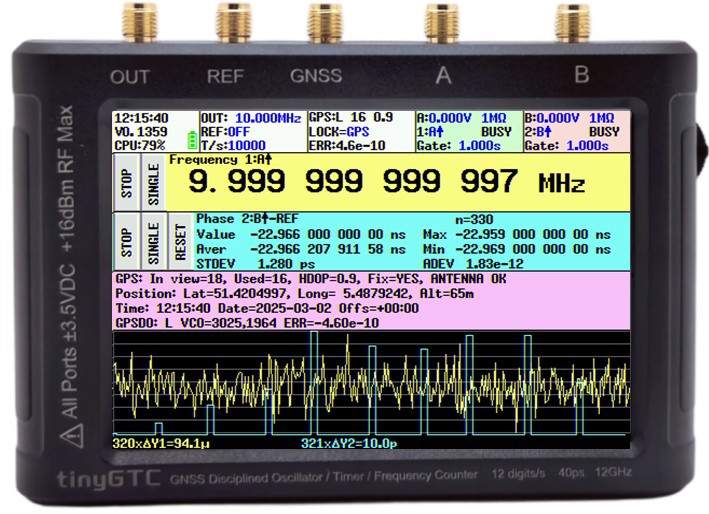

The tiny GTC (ZC412) functions as a frequency counter/dual timer/counter with a built in GPS Disciplined Oscillator (GPSDO). This means uses GPS signals to provide highly accurate and stable timing and frequency references.

The ZC412 is used for precise measurement and generation of reference frequencies required for accurate calibration of other RF equipments.

The ZC412 has a maximum frequency range to 12Ghz and will also deliver very satisfactory results for ADEV measurements.  The unit can also be locked to an external GPS time signal (UTC).

The ZC412 has a 4" touchscreen,a USB interface, 32GB SD card slot to store measurements.

PLEASE BE AWARE THE TINYGTC ZC412 IS NOT AS WELL PROTECTED AGAINST OVERLOAD AS MANY EXPENSIVE COUNTERS. BUYERS ARE ADVISED TO READ ALL THE RELEVANT INFORMATION FROM THE TINYGTC WIKI PAGE TO PREVENT DAMAGE TO YOUR UNIT.

Specifications.

Input coupling Input A and B: DC   Ref input AC

SMA A                                     0-12Ghz(DC, 1M Ohm/25pf or 50 ohms

SMA B                                     0-350Mhz(DC 1M Ohm/25pf or 50 ohms

SMA out                                   0.1Hz to 100 Mhz,3Vpp AC Coupled                                                           square wave or pulse, 50 ohms

SMA ref                                   Optional external reference input AC,

                                                10Mhz + 5dbm to +15dbm or output

                                                 8khz to 250Mhz,3VppAC coupled square

                                                 wave ,50 ohms

SMA GPS                                  Active GNSS antenna input permanet

                                                 +3v bias

Input impedance                    1M ohm/2pf 50 ohms

Resolution                               40ps

Trigger level                            0-3.5v

Display                                     4" touchscreen

Power Supply                          Built in rechargeable battery.

Max. input voltage                  +- 3.5vdc,3.5Vpp or 16dbm in 50 ohms

Interfaces                               USB,OUT pulse or square wave,external

                                                reference in/output,active GPS antenna

                                               A and B  measurement inputs.

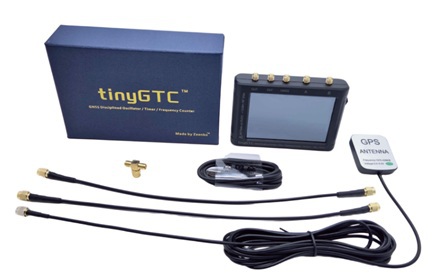

Accessories

32GB micro SD card

USB cable

SMA Tee

2 short SMA cables

Active GPS Antenna

ORDER CODE   ME-ZC412

PRICE   £149.00

PLEASE NOTE NOT YET IN STOCK DUE AROUND DECEMBER 15TH

FORWARD ORDERS ACCEPTED.
