NanoVNA - Vector Network Analyser 2.8" screen

Now upgraded 50KHZ to 1.5Ghz handheld portable Vector Network Analyser, ideal for all those antenna measurements. Measures SWR, provides Smith Chart information , impedance, R +-j,Q factor, insertion loss, reflection loss, phase angle, etc

All connecting leads supplied with facility to download to your PC. Internal rechargeable batteries from USB.

Every shack should have one.....





Description

PCB: 54mm x 85.5mm x 11mm (without connectors, switches)
Measurement frequency: 50KHz - 1500MHz
RF output: -13dbm (maximum -9dbm)
Measurement range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 30dB
(600M-900MHz));
Port SWR: < 1.1
Display: 2.8 inch TFT (320 x240)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 120mA, built-in 400mAh battery, maximum charging current
0.8A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:<2.5ppm
Frequency Stability:<0.5ppm

Order Code. ME-VNA

Price £49.95 + £7.50 post

BACK IN STOCK AS OF MAY 9TH 2024

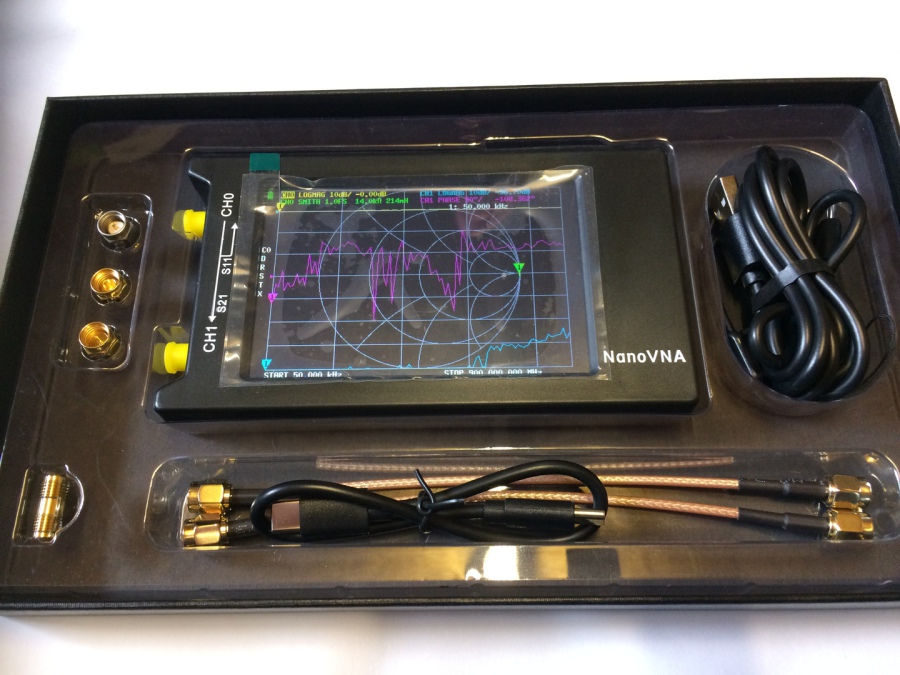

 NanoVNA H4 Vector Network Analyser 4" screen 50khz to 2000Mhz

Upgraded 4 inch screen version of the NanoVNA, all of the specifications and features of the standard VNA we sell as above, but here we have a larger screen easier to use in an outside environment, frequency range is also extended now from 50Khz to 2Ghz.  A superb piece of kit which will be very popular with amateur radio enthusiasts and professionals alike.

Again measures SWR, filter networks, TDMA applications, Smith Charts, Logmag, cable velocity etc, complete with calibration SMA connectors, C to C USB lead   ME-VNAconnect to an Android phone, C to USB lead to connect to your PC, no drivers to download, rechargeable internal battery, USB charging lead, instructions on a flow chart diagram, supplied in a lovely presentation case.

Order Code ME-VNAH4

Price each : £79.95 + £7.50 POST

BACK IN STOCK AS OF 19TH APRIL 2024



Please note we are doing our utmost to maintain the price on this item but material and import duty costs have spiralled and price may have to go up.

At present we are hoping to keep the above price as long  as we can.



Our address.  Chaos Cottage, Otley Road, Bingley  BD16 3AY By appointment only please. Tel:07825549430

Mirfield Electronics   Mobile: 07825549430



Or use our contact form.

TinySA Spectrum analyser to 960Mhz . Supplier of the genuine TinySA.

TinySA SPECTRUM

ANALYSER  TO 960 MHZ ONLY £69.95



Order Code ME-TINYSA

Price    £69.95 + UK Post £7.50

Europe post £10.00
